The Sound Box

2017, 3D printing, laser cut, toy xylophone, wooden ball

This is a sound box design. There is a wooden ball in the inner structure. When you hold the box and shake it, the ball in the center will hit on the steels disassembled from a toy xylophone and make the sounds of musical note C, E, G and a higher C.

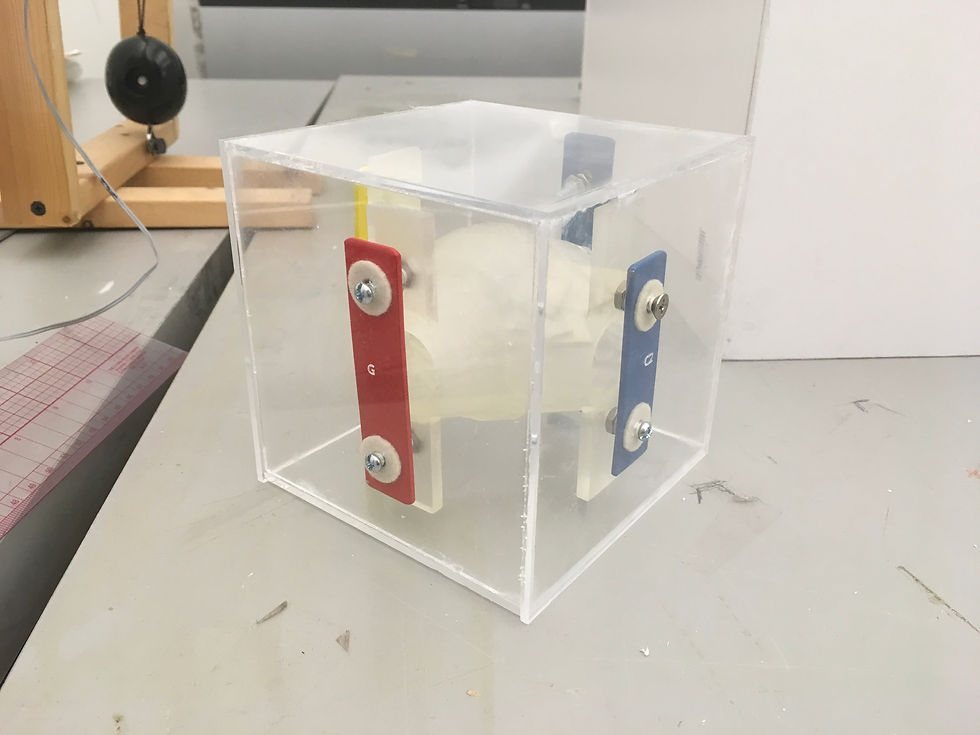

final view
final view
press to zoom
materials and setup
materials and setup
press to zoom
3D model in Modo
3D model in Modo
press to zoom
test samples
test samples
press to zoom
